3M Scotchkote Fusion-Bonded Epoxy Coating 134 – 65lbs Bag

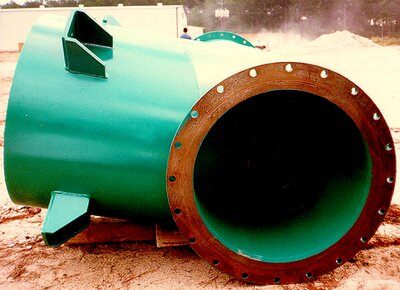

3M™ Scotchkote™ Fusion-Bonded Epoxy Coating 134 is a one-part, heat curable, a thermosetting epoxy coating designed for corrosion protection of metal. The epoxy is applied to preheated steel as a dry powder which melts and cures to a uniform coating thickness when properly applied. This bonding process provides excellent adhesion and coverage on applications such as valves, pumps, pipe drains, hydrants, pipes, tanks, and porous castings. Scotchkote™ coating 134 is NSF/ANSI 61 certified for potable water applications and is also resistant to wastewater, corrosive soils, hydrocarbons, harsh chemicals, and seawater. Powder properties allow easy manual or automatic application by electrostatic or air-spray equipment.

SKU: 134.65 Categories: ,


3M Scotchkote Fusion-Bonded Epoxy Coating 134 is a single-component, heat curable, thermosetting epoxy coating engineered specifically for exceptional corrosion protection of metal surfaces. This epoxy is adeptly designed to be applied as a dry powder to preheated steel, where it melts and cures into a uniform and sturdy coating. This fusion-bonding technique ensures superior adhesion and thorough coverage, making it ideal for a variety of applications including valves, pumps, pipe drains, hydrants, and porous castings.

Prominent Features of 3M Fusion-Bonded Epoxy Coating 134:

  • Superior Corrosion Resistance: Effectively withstands exposure to wastewater, corrosive soils, hydrocarbons, harsh chemicals, and seawater.
  • Versatile Application: Can be easily applied either manually or automatically using electrostatic or air-spray equipment.
  • No Primer Required: Most applications don’t necessitate a primer, simplifying the process.
  • Flexible Application Methods: Suitable for electrostatic application on both preheated and unheated metal parts, with subsequent baking for curing.
  • Extended Gel Time: Allows for application on large or intricate articles, minimizing issues such as runs or sags.
  • Smooth Internal Coating: Ideal for coating the insides of pipes or fabrications where a corrosion-resistant, smooth finish is required.
  • Machinable: Can be precisely machined to meet exacting tolerances.
  • Visual Inspection and Customization: Allows for easy visual inspection and can be painted for color coding.
  • Durable Storage and Transportation: Resistant to sagging, cold flow, and softening; lightweight for reduced shipping costs.
  • Wide Temperature Range Protection: Remains protective over a broad temperature spectrum and resists direct burial soil stress.
  • High Adhesion and Toughness: Offers excellent resistance to cavitation and cathodic disbondment.
  • Chemical Resistance: Exhibits strong resistance to chemicals, ideal for elevated temperature service.
  • Long-Term Reliability: Proven performance in water, sewage, and various service environments, meeting AWWA Standard C213 and C550.
  • Optimal Operating Temperature: Functions effectively up to 230°F/110°C in dry conditions.

3M Fusion-Bonded Epoxy Coating 134 is more than just a protective layer; it’s a comprehensive solution for safeguarding metal against harsh environments and corrosion. Whether for industrial, municipal, or other demanding applications, 3M Fusion-Bonded Epoxy Coating 134 delivers durability, reliability, and performance.

This is just one of many 3M products that we offer, check out all that we offer here.

Additional information

Weight 150 lbs
Dimensions 48 × 48 × 24 in
