Chiller Plant at Big 10 University – 2015

Chiller Plant at Big 10 University – 2015

The Problem

A Chiller Plant at a Big 10 University was experiencing galvanic corrosion, also know as bimetal corrosion, which was eating away at the metals and causing tubes to plug.  This University wanted to lower their energy cost and felt a hydrophobic ceramic enhanced polymer coating would provide a smoother surface and reduce energy bills.  They chose the USI Team to work on this important project.

The Substrate


The Solution

The USI Team tented the area to create an exhaust/dust-free environment. Before blasting the tubes were corked to prevent abrasive blast media from going into the copper tubes.

The USI Team first abrasive blasted to NACE 2 specifications, to a 2 ½ to 4 mil anchor pattern then rebuilt lost metal around the tubes with RESIMETAL 201 Ceramic Repair Paste.

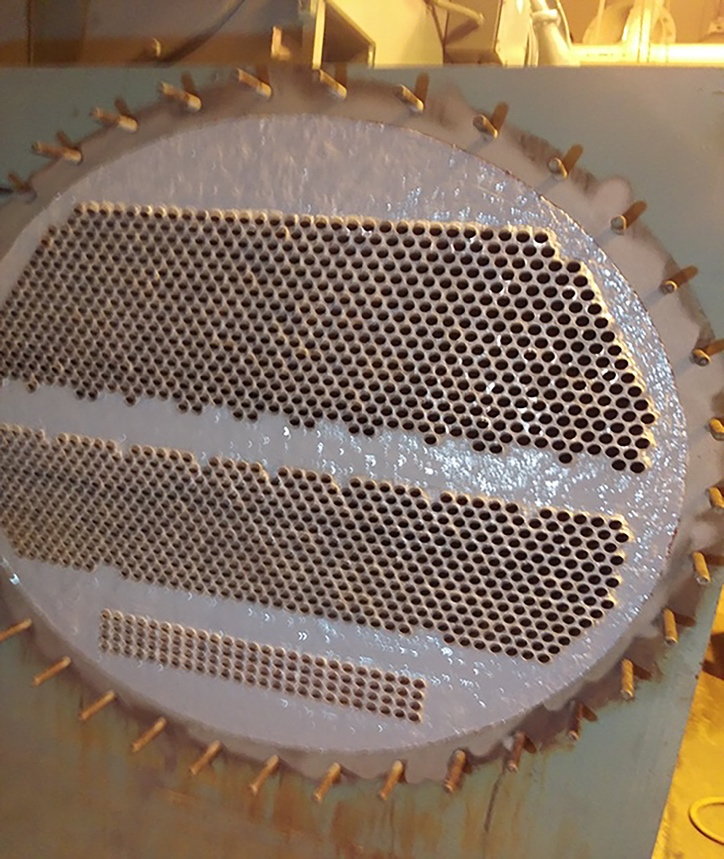

Lastly, two coats of RESIMETAL 203 Superflow Ceramic Repair Fluid were brush applied by the USI Team to give it a smooth, hydrophobic finish to be more efficient and provide an erosion corrosion free environment. The first coat is applied in red, the second in gray. That way as you do your regular maintenance checks on your chiller, if you start to see red, you know it’s time to re-coat before you allow the galvanic corrosion to happen.

Products Used:
