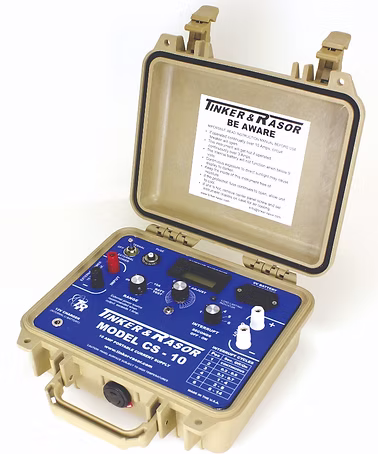

Tinker and Rasor CS-10 Current Source

$1,250.00

Description

The Tinker and Rasor CS-10 is a powerful, portable current source specifically engineered for cathodic protection professionals. Housed in a MIL-SPEC ruggedized case, the CS-10 offers a DC output adjustable from 0 to 10 amps, with the flexibility to operate in either continuous or interrupted mode. Its precision LCD display with 1 mA resolution ensures accurate readings in the field or lab.

Ideal for field applications such as DCVG surveys, casing shorts, insulator testing, and current requirement analysis, the CS-10 is built for reliability in extreme conditions. Whether you’re troubleshooting pipeline anomalies or verifying cathodic protection performance, the CS-10 provides dependable, controlled output backed by durable construction.

Product Benefits

  • Precise Adjustable Output – Delivers up to 10 Amps of DC current for a wide range of testing scenarios.
  • Interrupter Functionality – Selectable ON/OFF timing sequences for dynamic CP surveys.
  • Accurate Monitoring – LCD display gives real-time output with 1 mA resolution.
  • Rugged & Portable – Lightweight (6 lbs) and weather-sealed case ensures performance in tough environments.
  • Flexible Power Options – Operates with internal 12V rechargeable battery or external 12V DC input.

Typical Applications

  • Determine cathodic protection current requirements
  • Conduct DCVG (Direct Current Voltage Gradient) surveys
  • Locate and test casing shorts and insulators
  • Perform CP maintenance checks
  • Simulate CP system behavior for troubleshooting

Specifications

  • Output Range: 0 to 10 Amps DC (adjustable)
  • Input Power: 12V external DC or internal rechargeable Li battery
  • Interrupter Timings:
    • 0.2s OFF / 0.8s ON
    • 0.3s OFF / 0.7s ON
    • 1s OFF / 4s ON
    • 2s OFF / 8s ON
    • 6s OFF / 14s ON
  • Display: LCD with 1 mA resolution
  • Weight: 6 lbs (2.72 kg)
  • Construction: MIL-SPEC case, weather-sealed, lockable

Kit Includes

  • Tinker and Rasor CS-10 Current Source
  • 12V Rechargeable Li Battery
  • 9V Replaceable Battery
  • Structure/Ground Cable Set
  • 12V DC Power Cable Set
  • Battery Charger
  • Instruction Manual
  • Certificate of Calibration

Trusted by CP Professionals Worldwide
The Tinker and Rasor CS-10 delivers unmatched control and accuracy for cathodic protection system testing. From DCVG surveys to insulator diagnostics, it’s the reliable companion for field engineers and technicians who demand performance in every condition.

Additional information

Weight 8 lbs
