InduMar STOP IT HP (High Pressure) Pipe Repair Kit

$525.00$1,625.00

Stop It HP Pipe Repair Kit  is made to use on pipes and comes with 2-part cartridge with gun.

STOP IT HP utilizes a pre-measured 2-part epoxy system combined with high performance, aramid fiber fabrics to provide superior leak sealing capacity with strong interfacial bonding. STOP IT HP is recommended for high pressure applications up to 2,000 psi (140 kg/cm2 ) with a built in 5:1 safety margin. Repairs to high pressure process piping may be completed in as little as 4 hours.

STOP IT HP is supplied in a kit with all of the necessary components for field installation. Installation requires no special training and involves minimal surface preparation. Standard kits for repair of pipes up to 4″ diameter are available; non-standard kits can be custom made to order with short delivery times.

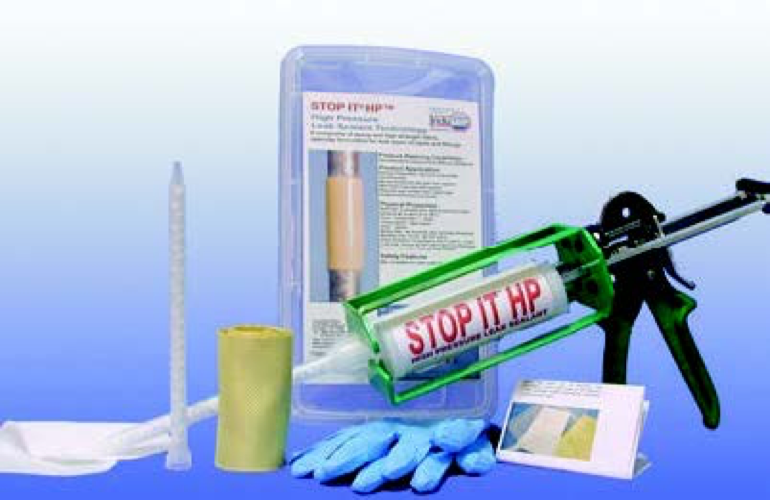

STOP IT HP Pipe Repair Kit comes with Cartridge and Gun!

Size goes by pipe diameter!

STOP IT HP Pipe Repair Kit Sizes :

InduMar STOP IT HP Pipe Repair Kit 1″ – EACH – $525.00
InduMar STOP IT HP Pipe Repair Kit 2″ – EACH – $935.00
InduMar STOP IT HP Pipe Repair Kit 3″ – EACH – $1,425.00
InduMar STOP IT HP Pipe Repair Kit 4″ – EACH – $1,620.00

Clear

Description

Features

  • One person, no special tools
  • Fast and easy
  • No shut downs or relights
  • No pipe replacement
  • Easily conforms to irregular shapes

The custom formulated epoxy resin offers strong adhesion to most substrates, thus addressing differences in thermal expansion between a pipe and the repair components. Repairs have demonstrated prolonged high pressure performance under repeated temperature and pressure cycling. The composite repair produces a durable coating that will not shatter under extreme operating conditions.

Repair applications can be made regardless of pipe orientation and results in a durable coating approximately 5mm thick. The repair epoxy system has a working time of approximately 8 – 10 minutes and will allow return to service in as little as 4 hours. Accelerated cure times are possible with the STOP  IT HP Annealing Kit.

Additional information

Weight N/A

Reviews

There are no reviews yet.

Be the first to review “InduMar STOP IT HP (High Pressure) Pipe Repair Kit”
