AC-15 AC Warning System Job Site Safety Device for Monitoring Induced AC Voltage on Pipelines and Structures

$455.00

Description

The AC-15 AC Warning System is a portable safety instrument engineered to detect hazardous AC voltage differentials between structures and ground, helping protect personnel working near high-voltage environments. Designed to meet NACE SP0177-2007 guidelines, the Model AC-15 provides audible and visual alarms when as little as 7 volts AC is detected, with reliable detection of voltages 15V AC or greater per NACE compliance.

This compact and rugged tool is essential for workers on pipelines running through high-voltage electric transmission corridors (rights-of-way), AC mitigation sites, and pipeline rehabilitation projects. Whether used during construction, maintenance, or inspections, the AC-15 AC Warning System enhances safety by continuously monitoring for dangerous induced AC potentials.

Product Benefits

  • Early Warning Alarm – Audible and visual alerts activate at 7V AC, helping prevent accidental contact with electrified structures.
  • NACE Compliant – Conforms to NACE SP0177-2007 standards for personnel protection on AC-influenced pipelines.
  • Portable and Compact – Lightweight and battery-powered for easy use in the field.
  • Reliable Detection – Superbright LEDs and loud audio signals ensure alerts are noticed in any environment.
  • Easy Maintenance – Uses a standard replaceable 9V battery for quick changes on site.

Typical Applications

  • Pipelines located in high-voltage utility corridors
  • AC mitigation projects
  • Cathodic protection system testing
  • Pipeline construction and maintenance
  • Any job site where personnel might contact AC-affected structures

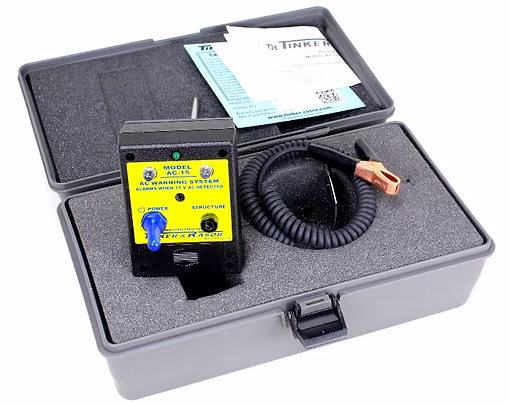

What’s Included in the AC-15 Kit

  • AC-15 AC Warning System Instrument
  • 9V Battery (pre-installed)
  • Instructions Manual
  • Certificate of Calibration
  • Earth Ground Spike
  • Carrying Case

Ensure worker safety in high-risk environments with the AC-15 AC Warning System—a must-have for pipeline professionals and field safety inspectors. Available now from Unconventional Solutions, your trusted distributor of corrosion prevention and electrical safety tools.

Additional information

Weight 3 lbs
