Electronic Leak Detector – Advanced Waterproofing Integrity Testing

Call for Quote

Call for Quote

Description

The Electronic Leak Detector (ELD) is the premier solution for fast, accurate, and cost-effective waterproofing integrity testing. Unlike traditional flood testing, which is time-consuming and poses potential risks to the building structure, the Electronic Leak Detector uses high-voltage technology to precisely locate leaks in roofing and waterproofing membranes. This advanced system is capable of detecting even the smallest breaches in non-conductive membranes such as single-ply roofing, modified bitumen, and other waterproofing layers without damaging the existing structure.

With rugged construction and state-of-the-art leak detection capabilities, the Electronic Leak Detector is engineered for accuracy, safety, and efficiency in both residential and commercial applications. Whether you’re inspecting a new installation or troubleshooting an existing waterproofing system, this tool provides the reliability needed for demanding field conditions.

Product Benefits:

  • Fast & Accurate Leak Detection: Identifies even the smallest breaches quickly and safely.
  • High Voltage Technology: Eliminates the need for traditional flood testing.
  • Lightweight & Ergonomic Design: Reduces operator fatigue during extended inspections.
  • Built for Tough Environments: Rugged construction ensures long-term durability.
  • Visual & Audible Indicators: Easy-to-read LCD output meter with integrated alerts for pinpoint accuracy.
  • Rechargeable Battery: Long life, lightweight, and convenient for all-day use.
  • Safety-Centric: Voltage safety cutoff switch and sensitivity adjustments for optimal field performance.

Typical Applications:

  • Leak detection on single-ply roofing systems (TPO, PVC, EPDM)
  • Modified bitumen and BUR membranes
  • Green roofs and waterproofing layers
  • Quality assurance inspections on new roof installations
  • Troubleshooting existing waterproofing failures
  • Commercial and industrial building envelope testing

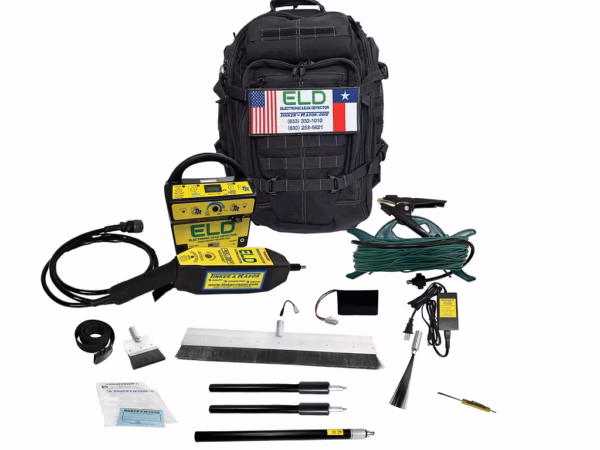

What’s Included in the Electronic Leak Detector Kit:

  • ELD Unit and Power Pack with 5 ft cable
  • Extra rechargeable battery and charger with adapter
  • 18” Wand and (2) 18” Extension Wands
  • 24” Wire Brush, 4” Wire Brush, and Fan Brush
  • 150’ Ground Cable with large clamp
  • 54” Adjustable Equipment Belt
  • Backpack Carrying Case
  • Screwdriver, Operating Manual, and Certificate of Calibration

Additional information

Weight 12 lbs
