SPY Portable Holiday Detector

$5,160.39$6,630.64

Choices:

Portable “stick” type detector (1-5kv) (unit only)
Portable “stick” type detector (1-5kv)
Portable “stick” type detector (1-15kv) (unit only)
Portable “stick” type detector (1-15kv)

Description

Durable, Reliable and Dependable, for decades the SPY® DC Holiday Detector was built to handle the most EXTREME environments!

We offer 2 different kilowatt versions of this SPY® DC Holiday Detector both as just the units and with the whole holiday detecting kits.

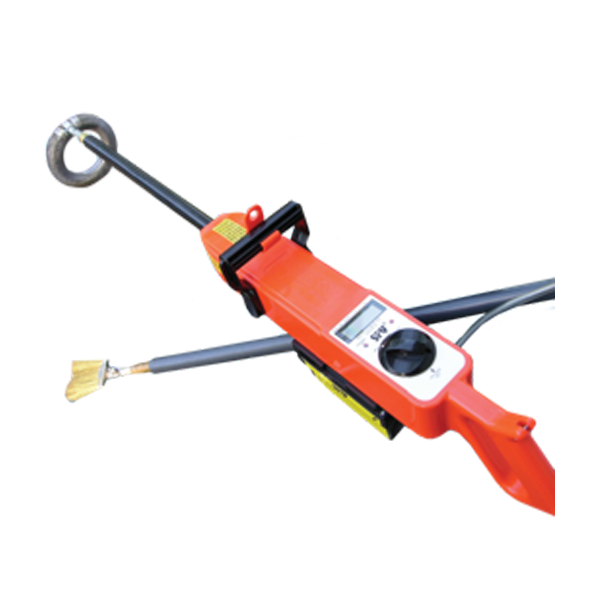

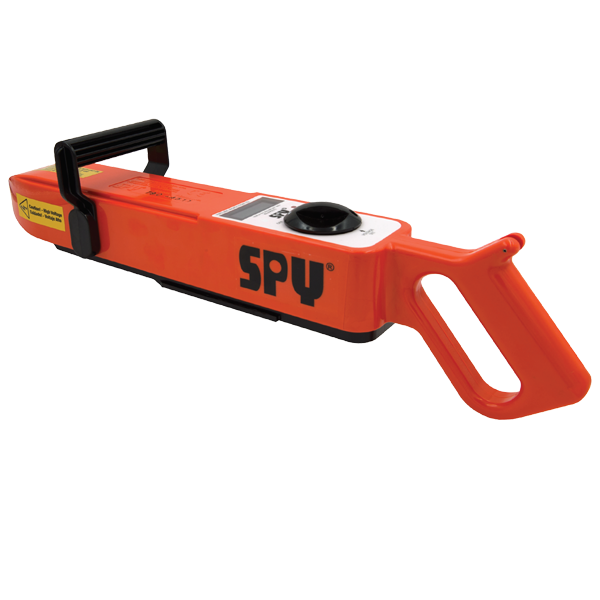

Portable “stick” type holiday detector (1-5kv) (unit only)

INFINITE VOLTAGE SETTING allows you to set the voltage exactly to the level you desire for the coating you are inspecting. Not six settings, not twenty… any setting you desire over the complete range of each detector model. Whatever the pipe size, two inches through sixty inches, you have at your control the exact voltage setting required.

AUTO REGULATED VOLTAGE keeps your voltage constant! Over a range of two inch through sixty inch pipe the detector output voltage automatically adjusts under the working load to the voltage levels you set. Now you can forget compensations for pipe size, or moisture on the pipe – the detectors automatically make these adjustments.

QUICK RELEASE BATTERY easily slips into position with a snap that announces positive contact and a secure lock in position. Two batteries and a universal charger are part of the kit. For continuous service, one battery is kept charging (approx. 8 hours) while the other powers the unit.

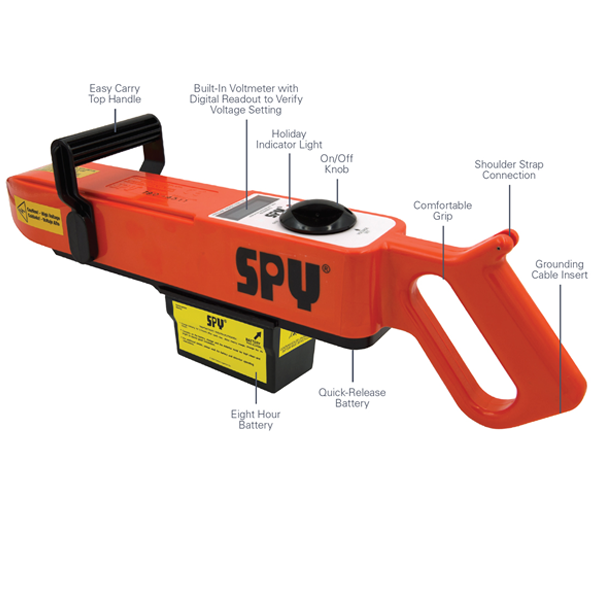

IMPROVED CONTROL

Horn and light for holiday indication.
Easy carry top handle.
Comfortable ergonomic rear handle.
Infinitely adjustable voltage.
Output voltage automatically regulated.
Quick and easy battery installation.

FAST SETUP. INTELLIGENT OPERATIONS.
Integral Voltmeter to verify voltage setting.
Light cycles off to indicate holiday is present.
Louder audible alarm for heavy equipment environments.

PROVEN RELIABILITY
Lightweight and durable construction with proven leading edge circuitry.
Infinite specific voltage adjustments on the y.
Automatic compensation for moisture.

CARRYING / SHIPPING CASE
Molded ABS plastic construction assures secure weather-proof protection for detector and components. Parts are cushioned in a molded insert. Full-length piano-type hinge, rugged catches.

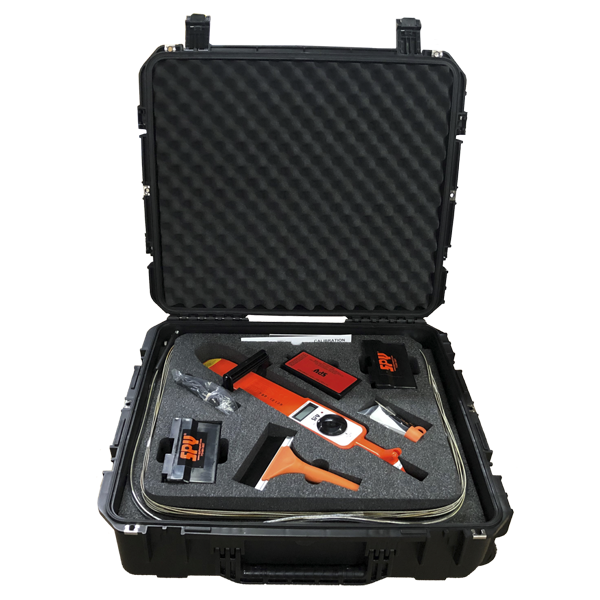

Portable “stick” type detector (1-5kv) (kit)

Included with kit:
2 – 12V Rechargeable Batteries
1 – 12V Charger
1 – DC Paddle
1 – 50 FT Ground Cable
1 – Electrode Wand w/ Spring Connector
1 – Shoulder Strap
1 – Shoulder Strap Handle Clip
1- Brush Adapter Kit
1- SPY® Screwdriver
1- Shipping / Carrying Case
(Case Dimensions: 28” x 16” x 8”)
1 – Operating Instructions
1- Certificate of Calibration traceable to NIST

Portable “stick” type holiday detector (1-15kv) (unit only)

For thicker coatings such as coal tars, extruded and tape coatings, the Model 785 has a range of infinite voltage settings from 1,000 to 15,000 volts. This wide range permits you to maintain a steady inspection rate on most types of coatings on most pipe sizes without changing detectors. Pulse voltage output only.

INFINITE VOLTAGE SETTING allows you to set the voltage exactly to the level you desire for the coating you are inspecting. Not six settings, not twenty… any setting you desire over the complete range of each detector model. Whatever the pipe size, two inches through sixty inches, you have at your control the exact voltage setting required.

AUTO REGULATED VOLTAGE keeps your voltage constant! Over a range of two inch through sixty inch pipe the detector output voltage automatically adjusts under the working load to the voltage levels you set. Now you can forget compensations for pipe size, or moisture on the pipe – the detectors automatically make these adjustments.

QUICK RELEASE BATTERY easily slips into position with a snap that announces positive contact and a secure lock in position. Two batteries and a universal charger are part of the kit. For continuous service, one battery is kept charging (approx. 8 hours) while the other powers the unit.

IMPROVED CONTROL
Horn and light for holiday indication.
Easy carry top handle.
Comfortable ergonomic rear handle.
Infinitely adjustable voltage.
Output voltage automatically regulated.
Quick and easy battery installation.

FAST SETUP. INTELLIGENT OPERATIONS.
Integral Voltmeter to verify voltage setting.
Light cycles off to indicate holiday is present.
Louder audible alarm for heavy equipment environments.

PROVEN RELIABILITY
Lightweight and durable construction with proven leading edge circuitry.
Infinite specific voltage adjustments on the fly.

CARRYING / SHIPPING CASE
Molded ABS plastic construction assures secure weather-proof protection for detector and components. Parts are cushioned in a molded insert. Full-length piano-type hinge, rugged catches.

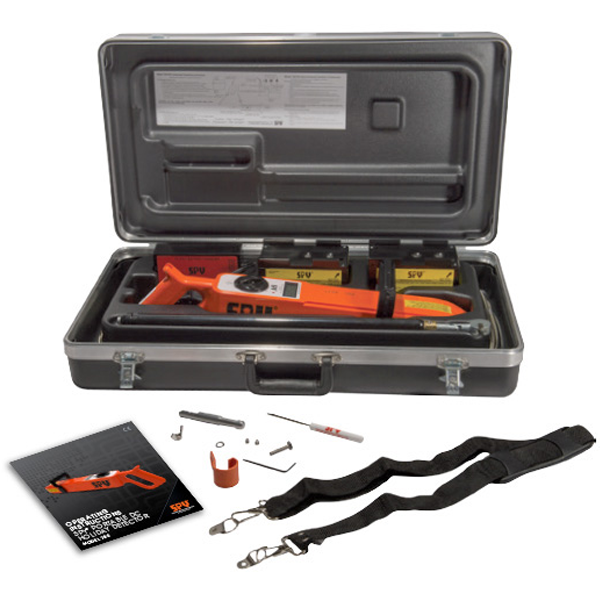

Portable “stick” type detector (1-15kv) (kit)

Included With Kit
2 – 12V Rechargeable Batteries
1 – 12V Charger
1 – 50 FT Ground Cable
1 – Electrode Wand w/ Spring Connector
1 – Shoulder Strap
1 – Shoulder Strap Handle Clip
1- Brush Adapter Kit
1- SPY® Screwdriver
1- Shipping / Carrying Case (Case Dimensions: 28” x 16” x 8”)
1- Operating Instructions
1- Certificate of Calibration traceable to NIST

Additional information

Weight 5 lbs
